Overview
As a key member of Baudcom “MetroEdge-Express” SDH/MSPP Product family, BD-STM1-4FE8E1 is a carrier-class, cost-effective, compact (only 1U high) SDH/MSPP platform that is designed for
applications in metro and access networks to facilitate the efficient transport
of traditional TDM and emerging data traffic for service providers. BD-STM1-8E1/4FE is a standalone multi-service SDH terminal multiplexer, transports 8E1 links as well as 4*Ethernet services over
existing SDH/SONET networks. They are suitable for extending the benefits of SH/SONET
networks toward remote or countryside location in quick and inexpensive manner.
Features
1. suitable for SDH/SONET Terminal Multiplexer
2. Flexible options for the STM
1 fiber optic interface, including single fiber duplex, as well as different power and
wavelength choices.
3. 8*E1s and 4*Ethernet traffic over legacy SDH/SONET networks
4. Ethernet ports support GFP/LCAS/VCAT
5. Configuration, alarm and security via CONSOLE
6. Standard 19 inch 1RU box, compact, lightweight, low power consumption
7. Dual mode power supply, -48V DC or 100~240V AC field selectable
8. RoHS compliant

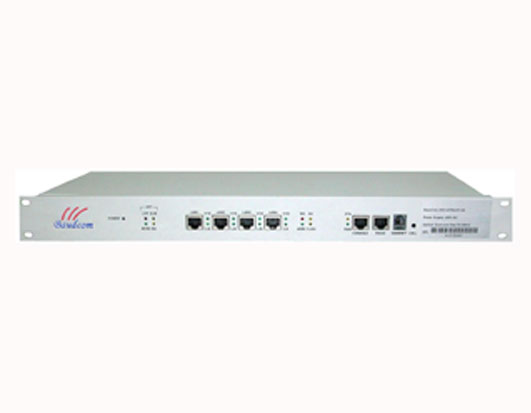

8E1 STM1 multiplexer back panel picture

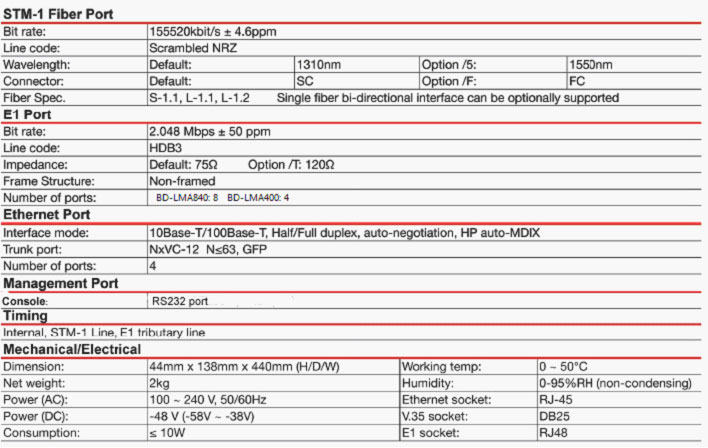

Specification:
