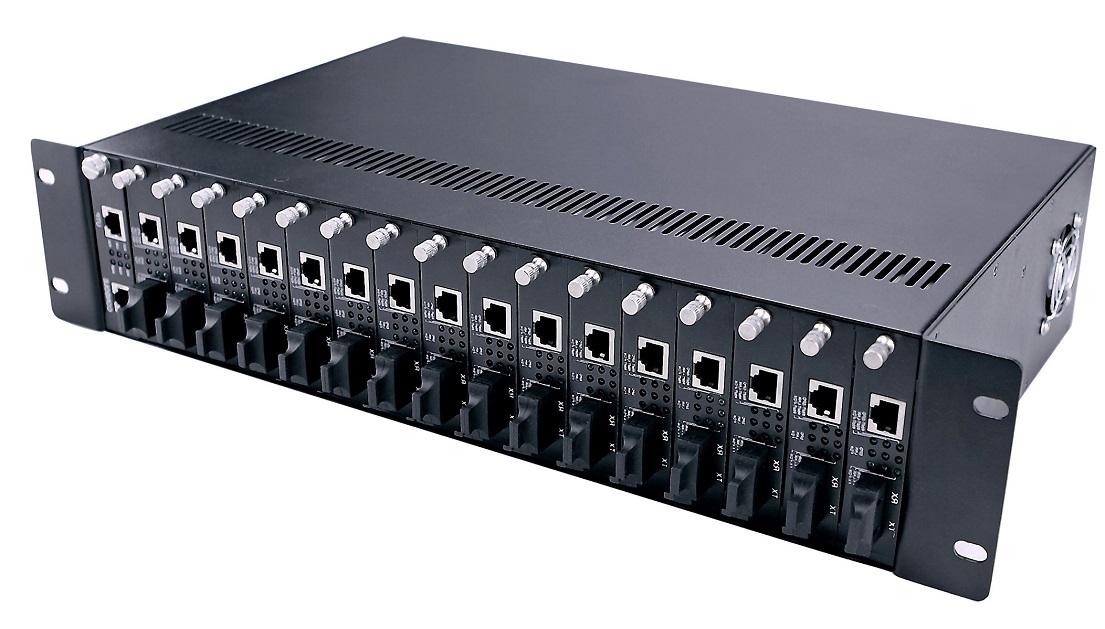

Product function: Suports all kinds converter card
Features:
● standard 19" rack mount
● It could realize media converter SNMP management. This is media converter module model name as BD03-card and SNMP module as BD03-card-NM
● can insert 16 function BD03-card , 1 SNMP module and 2 slots at back panel, support free combination of AC+DC redundant
● Support WEB based management
● Our manageable system supports the management based on WEB . It is easy to be understood and used ,no need install special software , so that it is easier for the users .
● Support SNMP management
● Fully support SNMP , the users can manage the relational devices via any operating system , such as HP-OpenView .
● Support Console management when emergency
● Support local command-string management via Console port , the users can manage the devices via other networks such as Telephone System , in case the Ethernet networks failed .
● Support TELNET
 ● The software can be upgraded online via TFTP.
● Hot Swappable (Power supply, MC module
● power supply: used with 220 VAC 50 Hz, 2 units
● have 2 Fans to radiate heat
● operated at 0-55 degree
● Dimension: 430(L) X 368(W) X 112(H) mm
 |
 |
| BD03-Card |
SNMP Card |
Parameter:
| Parameter |
Specifications |
| Number of slots |
17 |
| Structure |
2U rack |
| Power input |
AC Voltage: AC 85~265V; frequency: 50/60 Hz |
|
DC voltage: DC -36~72V |
| Power output |
DC5V 16A |
| Power configuration |
Single power supply, or dual power supply for warm backup mode |
| LED indication |
POWER (power supply) |
| Max power consumption |
95W |
| Operating temperature |
-10~55iC |
| Operating humidity |
5%~90% |
| Maintaining temperature |
-40~70iC |
| Maintaining humidity |
5% ~ 90% non-condensing |
| Dimensions of rack |
112mm (H) * 368mm (W) * 430mm (D) |
Application:
