INFORMATION

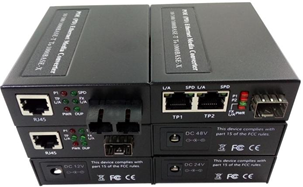

The 10/100/1000Base-T to 1000Base-X ethernet POE PD media converter allows two types of network segment to be connected easily and accepts power from the PSE equipment at the same time. Each converter is combined with one fiber port and two or one RJ45 ports. Complied with IEEE802.3af standard, the PD media converter accepts high level DC power from IEEE802.3af/at Power Sourcing Equipment (PSE) over CAT5 / CAT5e UTP cable (cable length up to 100meters / 330feets). The built-in DC-DC converter can convert the input high level DC power (about 48V) to low level DC power and the media converter will work while without external power supply.
POE PD Media Converter Key
Features：
a) 10/100/1000Base-T UTP to
1000Base-X fiber media convertion
b) Fully Compliant IEEE 802.3af PD
Interface
c) Built-in PD powered interface
and DC-DC converter
d) Choice of SC, FC, LC, BiDi or
other connectors for multimode and singlemode optical fiber
e) one 10Base-T / 100Base-TX /
1000Base-T RJ45 ports, each port can accept POE input power
f) Supports auto MDI-MDIX function
g) Supports both POE input （IEEE802.3af/at
) and external 48V DC power supply
Technical
Specifications:
Data
Rates:
10/100/1000Mbps (10/100/1000Base-T)
1000Mbps (1000Base-X)
Input
Power Requirements:
3af/at (42V-56V, standard POE input)
Pin Assignment and Polarity (POE input)
1/2, 3/6(non-polarity)
Environmental
Conditions:
Operating temperature
....................... …0℃ to 50℃
Cooling....................................
free air convection
Storage temperature ......................
-20℃ to +70℃
Operating Humidity....... 90% max,
non-condensi
Mechanical
Specifications:
Case
Material............................................... Iron
Case
Color................................................. Black
Net Weight..............................
200g approx. / unit
Dimensions............... 71(W) x 26(H) x
94(L) (mm)
Do not include transceiver length
Connectors:
DC
Inlet.......................................... DC470-2.0
LAN……………………………….Shielded RJ-45
Fiber............................. see
ordering information
