Description:
G.703 impedance matching baluns solve the mismatch between UTP and coaxial cable. The baluns can be used for internal network connectivity T1/E1/CPE network transmission equipment and other applications.

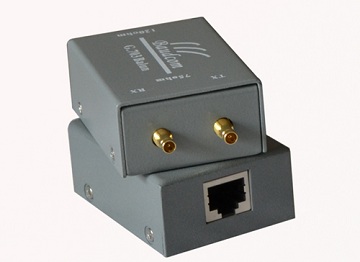

The G.703 1.0/2.3 balun adapter perform 120ohm to 75 ohm signal conversion, the 75ohm interface is dual coax 1.0/2.3 connector, the 120ohm is RJ45 connector.
Supporting E1 data rates to 2.048 Mbps, the balun receive 75 ohm signals and convert them to 120 ohm for transmission over a network or reception by a CPE. The signals output by the BD-Balun-1.0/2.3 balun are scaled to match the pulse shape requirements specified by the CCITT G.703 standard.
Features:
-
75 Ohm Dual Coax (1.0/2.3 connector) to 120 Ohm Twisted Pair
-
Bi-Directional Signal Conversion
-
No AC Power or Batteries Needed
-
Female dual Coax 1.0/2.3 Connectors
-
Ultra-Miniature Enclosure
Dimension
75mm(L)
45mm(W)
22mm(H)
G.703 Interface
75OHM Connector: 1.0/2.3
120OHM connector: RJ45, 1 2 TX,4 5 RX
